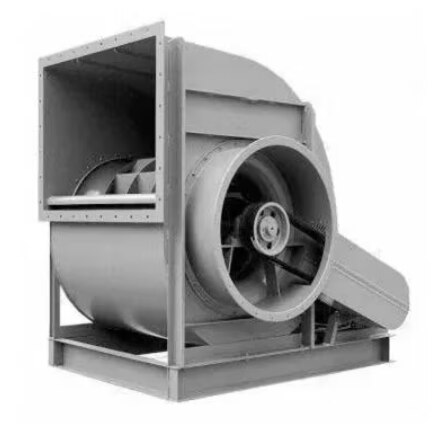

A Ventilation Centrifugal Blower is a dynamic air-moving machine designed to handle a specified volumetric flow rate against a defined system resistance.
In a centrifugal blower, air enters the impeller axially and is accelerated radially by the rotating impeller. The velocity energy generated by the impeller is subsequently converted into static pressure within the volute/casing or discharge system.
Hare Krishna Blower designs and manufactures centrifugal blowers for industrial ventilation, exhaust, process-air handling, fume extraction, dust extraction and HVAC applications.
The blower is selected according to the complete system duty rather than motor power alone.
The operating sequence of a centrifugal blower is:
Air Inlet → Impeller → Velocity Generation → Pressure Conversion → Casing/Volute → Discharge
The rotating impeller transfers mechanical energy from the motor to the air.
The developed pressure is generally represented as:
Total Pressure = Static Pressure + Velocity Pressure
For system selection, it is important to clearly define whether the specified pressure is:
Static Pressure
Total Pressure
Pressure rise across the fan
System resistance
Confusing static and total pressure can result in incorrect blower selection.
Q1. What is a Ventilation Centrifugal Blower?
A Ventilation Centrifugal Blower is an industrial air-moving equipment designed to efficiently move large volumes of air through ducts, ventilation systems, exhaust systems, and industrial processes.
Hare Krishna Blower manufactures robust centrifugal blowers designed for reliable and continuous industrial operation.
Q2. Where are Ventilation Centrifugal Blowers used?
Ventilation centrifugal blowers are commonly used for:
• Industrial ventilation
• Factory exhaust systems
• Heat and fume extraction
• Dust and air extraction
• Fresh-air supply systems
• HVAC systems
• Process ventilation
• Boiler and furnace ventilation
• Kitchen and commercial exhaust
• Textile and printing industries
• Foundry and metal industries
• Cement and mineral industries
• Pharmaceutical industries
• Food processing industries
• Paper and pulp industries
Q3. What is the difference between a Centrifugal Fan and a Centrifugal Blower?
Both equipment use centrifugal action to move air, but the selection depends on the required airflow and pressure.
A centrifugal fan is generally selected for ventilation and air circulation applications, while a centrifugal blower is commonly used where higher pressure development or resistance through ducts, filters, scrubbers, cyclones, or process equipment is involved.
The actual selection should always be based on the required airflow, pressure, temperature, density, and system resistance.
Q4. How do I select the correct Ventilation Blower?
The blower should be selected based on the following parameters:
• Required Airflow – CFM / CMH
• Static Pressure – mmWG / Pa / in. WG
• Total Pressure, if applicable
• Air Temperature
• Air Density
• Gas composition
• Operating altitude
• Required RPM
• Motor Power
• Duty cycle
• Installation arrangement
• Material of construction
Providing accurate operating conditions helps ensure proper blower selection and performance.
Q5. What airflow capacities can Hare Krishna Blower provide?
Hare Krishna Blower can design and manufacture centrifugal blowers according to the customer's required air volume and pressure.
Instead of selecting a blower only by motor HP, we recommend selecting the complete system based on the required duty point.
Example:
Airflow: 10,000 CMH
Static Pressure: 300 mmWG
Temperature: 40°C
The blower can then be engineered according to the required operating point.
Q6. What type of impellers are available?
Depending on the application, Hare Krishna Blower can provide different impeller configurations, including:
• Backward Curved
• Backward Inclined
• Airfoil
• Radial
• Radial Tip
Each impeller geometry has different characteristics related to pressure, efficiency, noise, power consumption, and resistance to dust or particulate matter.
Q7. Why is impeller selection important?
The impeller is one of the most important components of a centrifugal blower.
Correct impeller selection affects:
• Airflow
• Pressure
• Efficiency
• Power consumption
• Noise level
• Operating stability
• Wear resistance
• Overall blower life
Hare Krishna Blower selects the impeller geometry according to the application and required operating conditions.
Q8. Can Hare Krishna Blower manufacture customized blowers?
Yes.
Blowers can be engineered according to customer requirements, including:
• Airflow
• Pressure
• Temperature
• Material
• RPM
• Motor rating
• Drive arrangement
• Rotation direction
• Inlet/outlet orientation
• Mounting arrangement
• Space limitations
• Special coating or paint system
Customized construction can be considered for specific industrial applications.
Q9. What materials can be used for blower construction?
Depending on the application, blower components can be manufactured using materials such as:
• Mild Steel – IS 2062
• Stainless Steel 304
• Stainless Steel 316
• SA 516 Gr. 70
• Special alloy steels
• Wear-resistant materials
• Other application-specific materials
Material selection depends on temperature, corrosion, abrasion, chemical exposure, and process conditions.
Q10. Can the blower handle hot air?
Yes, centrifugal blowers can be designed for hot-air applications.
For elevated-temperature applications, the design may require consideration of:
• Material selection
• Bearing arrangement
• Shaft design
• Thermal expansion
• Cooling arrangement
• Impeller construction
• Paint/coating system
The operating temperature should always be specified during blower selection.
