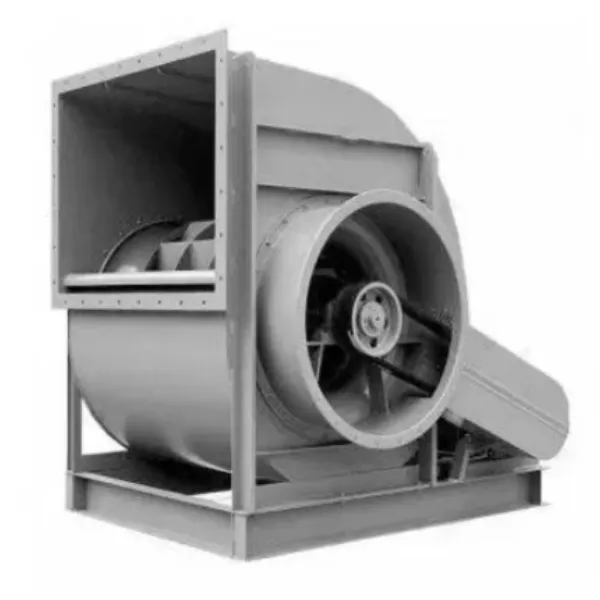

Industrial Centrifugal Fans

Engineered Air-Moving Solutions for Industrial Applications

Industrial Centrifugal Fans Manufacturer | Industrial Exhaust Fans | High-Pressure Fans | Process Air Fans

Hare Krishna Blower designs and manufactures industrial centrifugal fans for reliable air movement, ventilation, exhaust, process-air handling, dust extraction, fume extraction, HVAC and air-pollution-control applications.

Our centrifugal fan solutions are engineered according to the required airflow, pressure, temperature, air density, gas characteristics, operating speed and application conditions.

Rather than selecting a fan only by motor HP, the fan is selected around the required duty point: Airflow + Pressure.

1. WHAT IS AN INDUSTRIAL CENTRIFUGAL FAN?

An industrial centrifugal fan is a rotating air-moving machine in which air enters the impeller generally in an axial direction and is accelerated radially outward.

The impeller converts mechanical energy into air velocity and pressure. The casing then guides the air toward the discharge outlet while allowing recovery of part of the velocity energy.

Basic Airflow Path

Inlet → Impeller → Velocity Generation → Pressure Development → Casing → Discharge

Industrial centrifugal fans are particularly useful where the air-handling system has significant resistance due to ducts, filters, dampers, scrubbers, cyclones, heat exchangers or other process equipment.

2. INDUSTRIAL CENTRIFUGAL FAN – KEY PARAMETERS

Fan selection depends on several engineering parameters:

ParameterTypical UnitAirflowCMH / CFMStatic PressuremmWG / Pa / in. WGTotal PressurePa / mmWGTemperature°CAir Densitykg/m³SpeedRPMMotor RatingHP / kWEfficiency%NoisedB(A)RotationCW / CCWDriveDirect / Belt / Coupled

The actual operating point should be clearly defined before final fan selection.

3. WHY CHOOSE AN INDUSTRIAL CENTRIFUGAL FAN?

Industrial centrifugal fans are commonly selected when the application requires:

• Reliable continuous air movement
• Higher pressure capability
• Long duct systems
• Exhaust against system resistance
• Dust or fume extraction
• Process-air circulation
• Industrial ventilation
• HVAC air handling
• Air pollution control
• Customized construction

The correct fan configuration depends on the actual application and duty point.

4. CENTRIFUGAL FAN IMPELLER TYPES

Hare Krishna Blower can engineer industrial centrifugal fans using different impeller geometries.

Backward Curved

Suitable for applications where efficiency and stable operating characteristics are important.

Typical applications include:

• Industrial ventilation
• HVAC
• General exhaust
• Process air

Backward Inclined

A robust configuration used across a wide range of industrial ventilation and air-handling applications.

Airfoil

An aerodynamically optimized blade profile intended for applications where high efficiency is important and the handled air is relatively clean.

Radial

A robust impeller configuration that can be considered for dusty, particulate-laden or process applications depending on the material and operating conditions.

Radial Tip

Used for selected industrial applications requiring a combination of pressure capability and robust operation.

5. INDUSTRIAL CENTRIFUGAL FAN APPLICATIONS

Hare Krishna Blower centrifugal fans can be engineered for:

Industrial Ventilation

General factory ventilation and air circulation.

Exhaust Systems

Removal of contaminated, heated or unwanted air.

Fume Extraction

Extraction of process fumes and gases.

Dust Extraction

Air movement in dust-collection systems.

HVAC

Supply and exhaust air-handling applications.

Process Air

Air supply or exhaust for industrial processes.

Hot Air

Handling of elevated-temperature air with appropriate engineering.

Pollution Control

Applications involving filters, scrubbers, cyclones and other pollution-control equipment.
